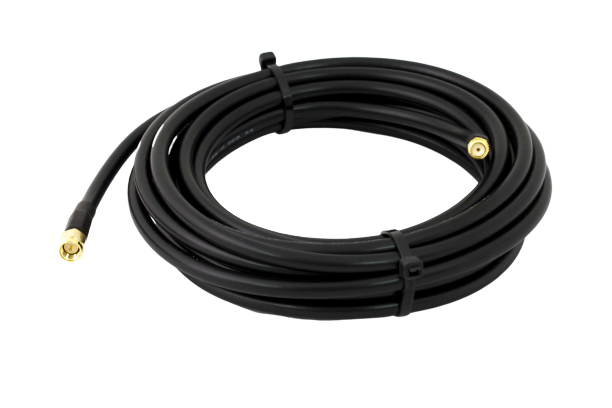

10M RF240 Low Loss Cable Assembly

RF240 coaxial cable is a 6mm diameter low loss cable suitable to operate as a jumper cable for outdoor wireless antennas. With excellent RF properties in a small diameter sheath, RF240 cable lends itself well to cable runs up to 15-20M for cellular applications.

This cable is a 10M RF240 cable assembly pre-terminated with coaxial connectors. Please select the correct connectors from the options available.

The RF240 cables are assembled in the UK to order so please allow 48 hours for dispatch.

Electrical Specifications

Conductor (diameter) Copper (1.4mm)
Dielectric (diameter) PEE (3.80mm)
Screen Aluminium + polyester + aluminium tape 100%
Tinned Copper 80%
Sheath (diameter) PVC (6.10mm)
Impedance 50 Ohm
Capacitance 80 pF/m
Velocity Ratio 84%
Screen Efficiency (dB) 100-900 MHz >90
