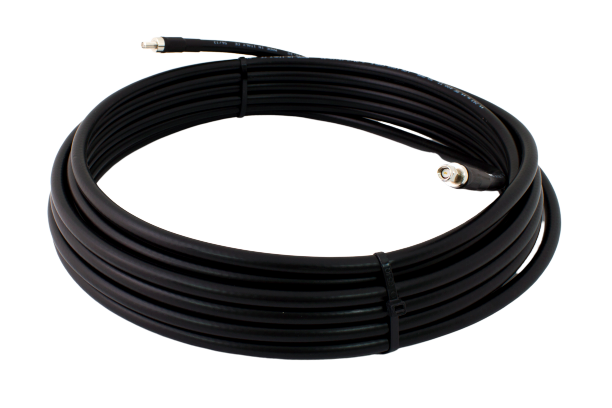

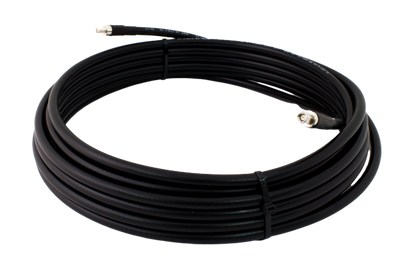

10M RF400 Very Low Loss Cable Assembly

RF400 is a very low loss 50 Ohm RF coaxial cable designed for longer cable runs and is comparable in performance to LMR400. Ideal for connecting external antennas to routers and modems.

This cable is a 10M RF400 cable assembly pre-terminated with coaxial connectors.

Please select your connector configuration from the drop down Product Options menu.
Built for performance and reliability, RF400 cable assemblies are cut and terminated in the UK to order, ensuring the exact fit for your application. Please allow up to 48 hours for dispatch.

Why Choose RF400 Cable

Extremely low signal loss over long distances
Durable PVC outer sheath for indoor and outdoor use
Superior screening to minimise interference
Compatible with 4G/5G routers, access points, and base stations
Ideal for professional telecom, M2M, and IoT installations

Electrical Properties:

Conductor (diameter) Copper Clad Aluminium (2.62mm)
Dielectric (diameter) PEG (7.20mm)
Screen Aluminium + polyester + aluminium tape 100%
Tinned Copper 80%
Sheath (diameter) PVC (10.30mm)
Impedance 50 Ohm
Capacitance 80 pF/m
Velocity Ratio 84%
Screen Efficiency (dB) 100-900 MHz >85
