2.4/5 GHz Low Profile Puck 3M cable RP-SMA connector FCPW35168-RS-3K

The CPW is a WLAN puck antenna and is a tough and durable dual band 2.4 and 4.9-6.0 GHz puck antenna with approx 3 dBi gain on the lower band and 5 dBi on the upper band.

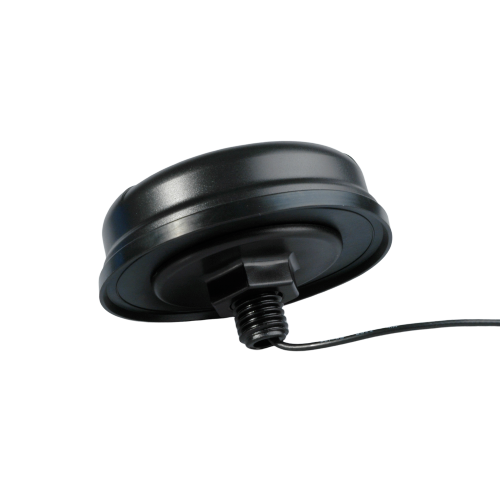

The antenna is a low profile screw-mount antenna requiring a 20mm drill hole. The cable exit is on the underside of the antenna and once mounted is totally enclosed, secure and waterproof. The antenna is secured in place by a nut that is tightened from underneath. The CPW WLAN puck antenna is ideal for Wireless LAN and WiFi applications where a discreet antenna is required, but performance cannot be compromised.

Specifications:

Frequency Range - 2.4-2.5 / 4.9-5.8 GHz
Impedance - 50 Ohm
VSWR - <1.5:1
Input Power - 10W max
Gain - 3 dBi / 5 dBi
Polarisation - Linear
IP Rating - IP67 once mounted
Cable - 3M RG174
Connector - RP-SMA Plug
Dimensions - 106x33.5mm (d x h)
