AllDisc 5G/4G Puck Antenna | High-Gain Low-Profile Cellular Antenna 710266

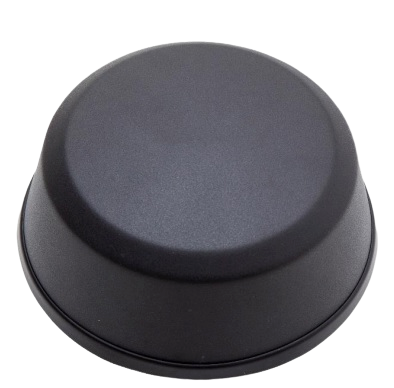

The AllDisc 5G puck antenna (also supporting 4G/LTE) from Smarteq, now part of PCTEL, is a compact, high-performance solution for demanding mobile and industrial communication systems. Designed as a permanent screw-mount antenna, it includes a 2.5 m RG316 cable with an SMA-male connector, providing a robust and reliable connection.

Engineered for 5G, 4G, LTE, 3G, and cellular applications, the AllDisc delivers excellent gain and signal stability when mounted on a ground plane (metal surface). Its low-profile puck design makes it ideal for installations where durability, performance, and aesthetics matter such as transportation, telematics, smart metering, wireless CCTV, and security systems.

Typical gain performance on a metal ground plane:

617–960 MHz: 5 dBi

1710–1880 MHz: 5 dBi

1900–2170 MHz: 4.5 dBi

2500–2690 MHz: 3.5 dBi

3300–3800 MHz: 6.5 dBi

The AllDisc puck antenna combines wide frequency coverage, strong gain, and rugged design, ensuring reliable connectivity in both fixed and mobile installations.
Other AllDisc versions with alternative cable lengths and connectors are also available, please contact us for details.
