710599 - Miniblade antenna 1.5M cable and SMA-Male
710599 - Miniblade antenna 1.5M cable and SMA-Male
Regular price
£9.25
Regular price
Sale price
£9.25
Unit price
/
per
Couldn't load pickup availability

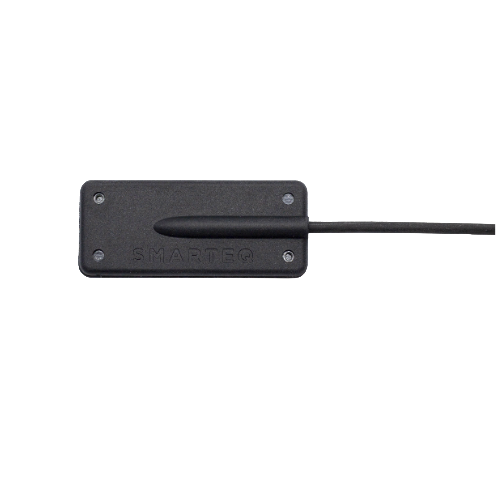

The MiniBlade wideband compact WiFi blade antenna from Smarteq covers the frequency bands from 2.4 GHz to 6 GHz. It is an adhesive mounted omni-directional ultra-wideband antenna. Ideal for applications such as indoor WiFi coverage, internet onboard buses and Wifi zones, it can be easily installed on on glass or other non-conductive surface.
With compact dimensions of 55.6 x 23.6 x 6.6mm, the MiniBlade offers gain ranging from 3.8 dBi at 2400 MHz to 7 dBi in the 5 GHz band. It’s flexible and slim construction makes mounting straightforward, even on curved surfaces.
This model has a 1.5M cable and SMA-Male connector. For other connector options, please contact us.
Specification:
| Frequency Band [MHz] |
2400- 2485 |
3400- 3800 |
4900- 5950 |
| VSWR | 2:1 | 2:1 | 2:1 |
| Efficiency (%) | 79% | 71% | 64% |
| 3D Max Gain (dBi) | 3.8dBi | 5dBi | 7dBi |
| Impedance | 50Ω | ||
| Polarization | Linear | ||
| Pattern Azimuth | Omni-directional |
