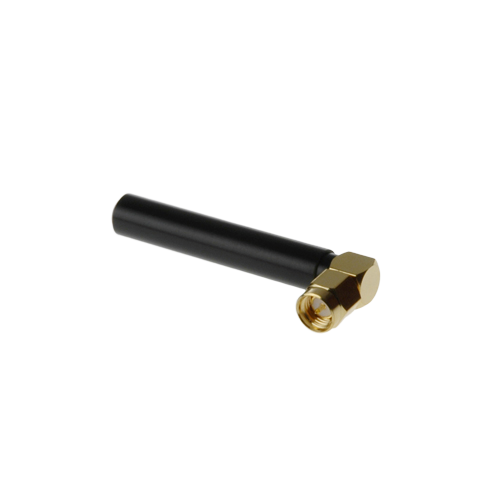

868 MHz 1/4 Wave stub antenna SMA-Male RA - FWR835021-SM-RA

The WR868 is a 868 MHz 1/4 wave stub antenna RA designed for ISM band terminals. Requiring a groundplane to operate a effectively, the WR868 is a based on a helical coil design and offers a compact solution for fixed and mobile terminals need 868 MHz connectivity. The antenna element  is housed in a durable and robust black acetal sheath. Ideal for IoT portable and fixed terminals required a small, compact 868 MHz antenna.

Clearance price whilst stocks last. Please contact us for volume pricing over a quantity of 500 pcs.

Frequency Range: 868-870 MHz
Element: 1/4 Wave Coil
VSWR: < 1.5:1
Impedance: 50 Ohm
Gain: 1 dBi
Height: 55mm
Connector: SMA-Male RA
