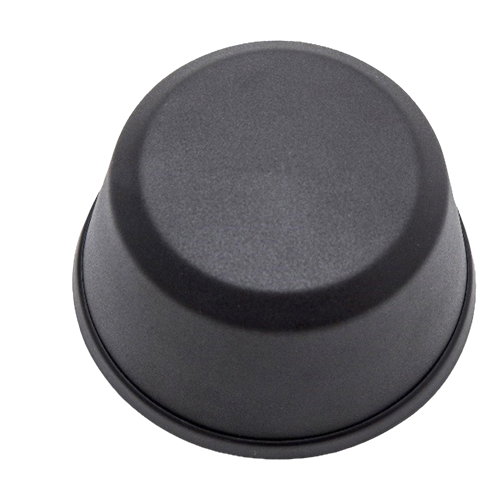

AllDisc-S 5G/4G low profile antenna 710255

The AllDisc-S antenna is a 5G ready, low profile antenna with durable design. It is the perfect choice for Smart City/metering, EV-charging, M2M applications and load handling. The superior RF performance enables high connectivity and throughput.

The antenna is IP6K9K classed and is verified according to VW test standards.

The 710255 model comes with 2.5m RG316 cable and SMA-M connector.

Electrical Specifications:

Mechanical Specifications:
Cable - 2.5M RG316
Connector - SMA-Male
Dimensions (D x H) 96 x 55 mm
Weight ~150g
Radome Construction PC/PBT/Aluminum alloy
Operating / Storage Temperature -40°C to +85°C
IP Class IP6K9K

Note: Antenna mounting onto a groundplane recommended
