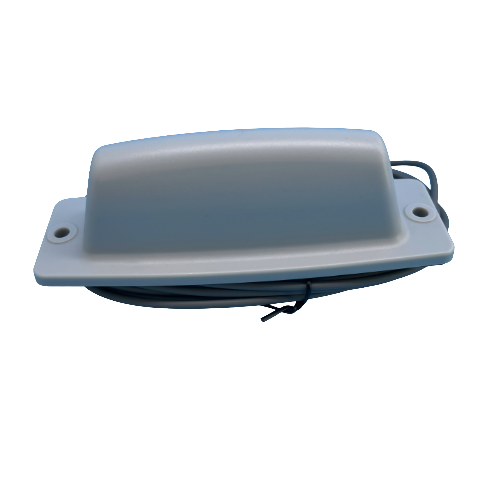

LP900 4G Low Profile Antenna 2.5M cable SMA-Male connector 710303

The LP900 is a 4G low profile antenna designed to meet the industrial demands on high RF-performance with multi installation capabilities. It’s durable design and low profile makes it ideal to use where a discrete and reliable installation is required. The LP900 antenna is a ground plane independent antenna enabling a wide range of installations on different materials, perfect for IoT and 4G applications.

Flexible multi band antenna – 790-960/1710-2690 MHz / 868 MHz

 Excellent RF-performance

 Low profile and durable design

 Adhesive Mount

Specifications:

Frequency 790-960/1710-2170/2400-2690 / 868 MHz

Impedance Nominal 50 ohm

Polarization Linear vertical

VSWR <2.5:1

Gain 790-960 MHz 0dBd (2.15 dBi)

 1710-2170 MHz 2dBd (4.15dBi)

 2400-2690 MHz 1dBd (3.15dBi)

868 MHz (2.15 dBi)

Dimensions 136x48x42mm (LxWxH)

Cable 2.5M RG316

Connector SMA-Male

Mounting - Adhesive
