LTE-RUGGED-HIGAIN-MAG-SM - 4G/3G Multiband Very Rugged & Compact Mag Antenna SMA

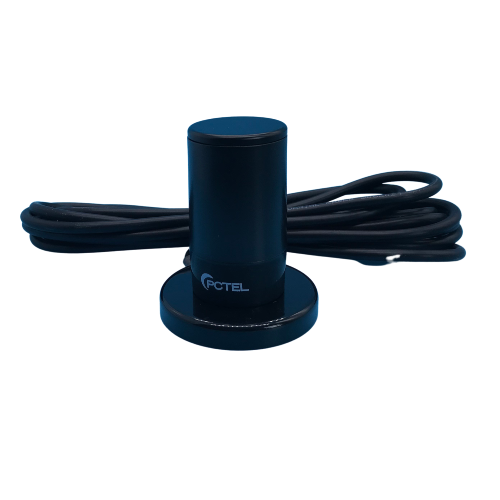

The LTE-RUGGED-HIGAIN-MAG-SM is a very rugged, compact multiband low profile antenna covering a LTE/4G/3G and 2G frequencies. With an overall height of just 61mm, this antenna is ideal for demanding telematics applications. This model is the antenna supplied with a black magnetic mount with 4M cable and SMA connector. This antenna/magnetic mount combo should mount onto a groundplane (metal surface). The antenna in this combo is the BMLPVMB/LTE from PCTEL.

Technical Specifications:

Frequency Range: 690-2700 MHz
Average Gain*:       3 dBi
VSWR:                <2:1
Polarisation:         Linear, Vertical
Impedance:          50 Ohm
Dimensions:         61x38mm (d x h) + Mount
Cable/Connector:  4M RG58 / SMA-Male Connector
* does not include any cable loss - when mounted on a groundplane.
