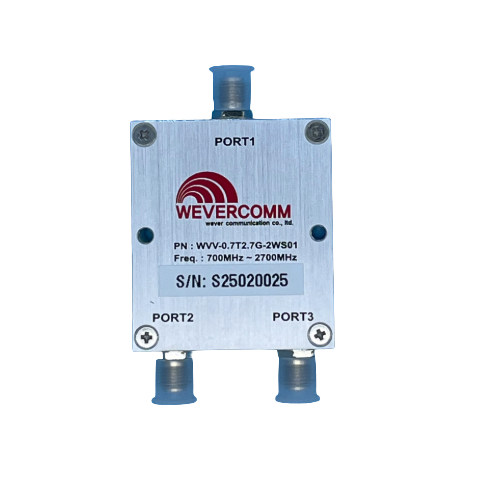

PD-4G-2WAY-SF - 2 Way Power Divider 700-2700 MHz SMA-Female

The PD--4G-2WAY-SF is a compact 4G/LTE Multiband 2-Way power divider with SMA-Female connectors. Manufactured by quality manufacturer Wevercomm, the manufacturers part number is WVV-0.7T2.7G-2WS01.

Electrical Specifications:

Frequency Range: 700 - 2700 MHz
Insertion Loss:       3.5dB Max
VSWR:                      1.3:1 Max
Isolation:                  20 db Min
Input Power:            1W CW Max
Impedance:             50 Ohm

Environmental:

Operating Temp:    -35 to + 75 Degrees C

Mechanical:

Dimensions:           42x48x14mm
RF Connector:        SMA-Female
