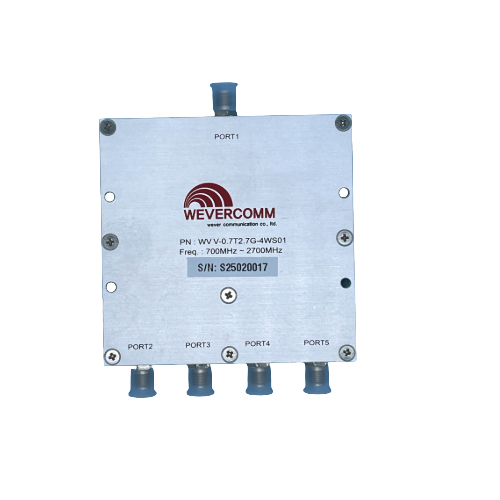

PD-4G-4WAY-SF - 700-2700 MHz 4-Way Power Splitter SMA-Female

The PD-4WAY-SF is a compact 4-Way power divider with SMA-Female connectors. This 4 way version covers all the 4G/LTE, 3G and GSM frequency bands. This power splitter is manufactured by Wevercomm - the manufacturer's part number is WVV-0.7T2.7G-4WS01.

Electrical Specifications:

Frequency Range: 700 - 2700 MHz
Insertion Loss:       7.0dB Max
VSWR:                      1.3:1 Max
Isolation:                  20 db Min
Input Power:            1W CW Max
Impedance:             50 Ohm

Environmental:

Operating Temp:    -35 to + 85 Degrees C

Mechanical:

Dimensions:           84x82.3x14mm
RF Connector:        SMA-Female
