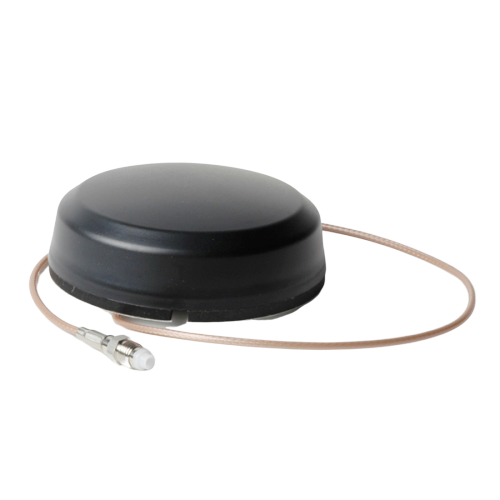

4G Puck SmartDisc 4G Low Profile Antenna 710211 2.5M cable SMA

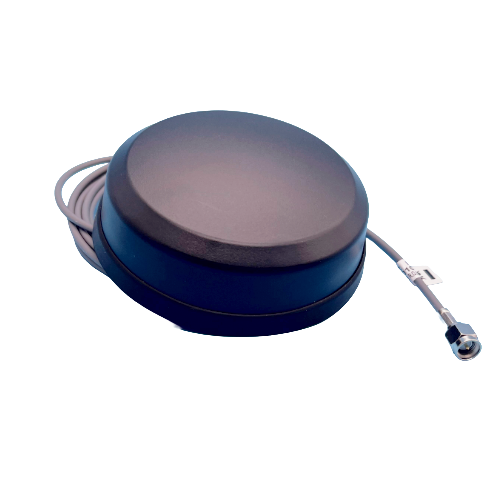

The SmartDisc is a multiband rugged low profile 4G puck antenna. This model has a black radome is screw-mounted with 2.5M cable and a SMA-Male connector. This antenna is manufact,ured by PCTEL (formerly Smarteq).

Mounting via stud underneath and with a gasket offering IP67 ingress protection when installed on a flat surface, this antenna offers 3.15 dBi gain across the bands.

The SmartDisc 4G puck antenna is ideal for many fixed and mobile commercial and industrial applications such as metering, telemetry, utlility monitoring, wireless security, kiosks, vending and wireless charging stations. The SmartDisc is widely installed on cabinets and enclosures in many industrial verticals that benefit from its rugged design and robust RF performance.

Suitable for use with U.FL/IPEX or MMCX to SMA-Female Bulkhead adapter cables.

Electrical
Frequency 790-960/1710–2690 MHz
Impedance Nominal 50 ohm
Polarization Linear vertical
VSWR Low Band 3:1
High Band 3:1 @
Gain 1dBd (3,15 dBi)
Max power 10 W

Mechanical
Dimension Circular 90 mm x Height 26 mm
Weight 190 g
Cable 2.5 or 0.5 meter RG 316 (not on all versions)
Connector SMA (m)
Material PC/PBT/Aluminum alloy
Color Black or white
Water ingress According to IP67 when installed
