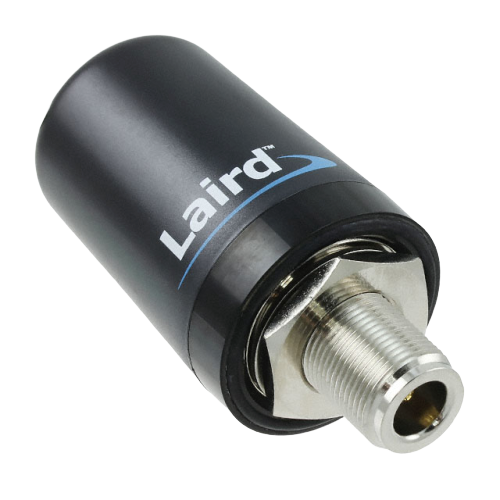

TRA4503P 450-470 MHz Permanent Mount Low Profile Antenna

The TR4503P Phantom is a 450-470 MHz low profile permanent mount antenna. With its whipless design and ultra robust radome,  this antenna can survive harsh installations.

With gain up to 3 dBi, the TRA4503P needs to be mounted on a metallic surface and mounts via way of its N-Female connector. It can be mated to N-Male cables for connection to the radio.

Specifications

Frequency Range - 450-470 MHz
Impedance - 50 Ohm
VSWR - <2:1
Height - 88.9mm
Width - 36.5mm
Connector - N-Female
Radome Colour - Black
