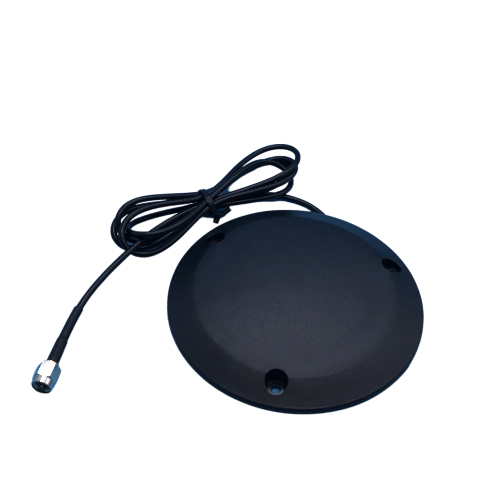

Very low profile 4G surface mount antenna PLATCH - PLA-7270-SM-1K

The Platch LTE 4G compact low profile antenna is designed for height-critical applications. It is ideal for pit lid, ground-level and discreet LTE/4G applications where a reduced-height antenna is required.

Measuring a shade over 100mm in diameter and just 14mm in height, the Platch LTE antenna is truly compact. It is fed by a1M RG174 cable  and SMA-Male connector exiting from the underside and is mounted via 3 mounting holes or alternatively via high grade adhesive. The antenna is incredibly robust and is fully sealed and waterproof and suitable for installation in harsh environments. It offers a peak gain of 2.88 dBi.

Suitable for low-level applications, meter-pit lids, parking, datalogging and utilities applications, it is ideally mounted onto a groundplane (antenna data measured on a 500x500mm groundplane). The part number of the Platch antenna with a 1M cable and SMA-Male connector is PLA-7270-SM-1K.

The Platch LTE 4G compact low profile antenna is one of a range Platch low profile products.
