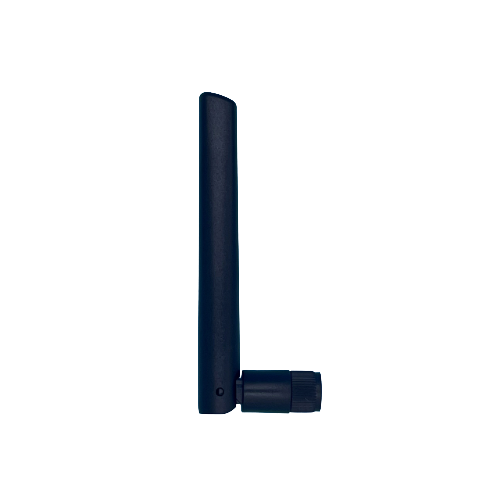

WFS compact WiFi 6 dipole antenna FWFS35389-RS-KR

The WFS3 is a compact dipole antenna designed to mount via its connector onto a wireless terminal, device or modem. With a hinged connector, the WFS3 can lock in either vertical or  horizontal positions using its RP-SMA connector.  Ideal for WiFi6/WiFi6E applications, the WFS3 antenna does not need a groundplane to offer superior RF performance.

Part Code: FWFS35389-RS-KR WFS3 antenna with RP-SMA connector

Specifications:

Frequency Range -   2.4-2.5 GHz /  5.15-5.85 GHz /  5.85-7.125 GHz
Gain - 2 dBi / 4 dBi / 4 dBi
VSWR: <2:1 / <2:1 / <3.5:1
Impedance: 50 Ohm
Polarisation: Linear - Vertical
Dimensions:  123.7 x 12.7mm (lxd)
Connector: RP-SMA Plug
