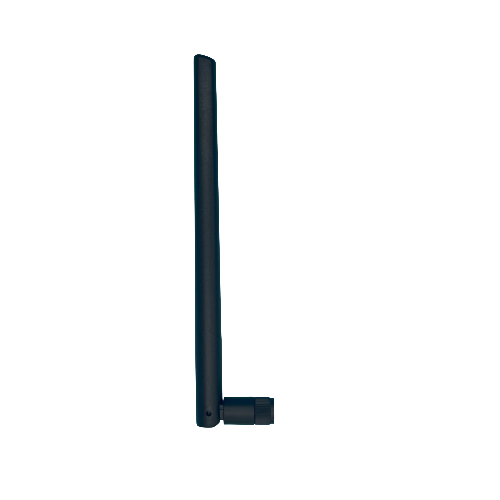

WFS performance WiFi 6 dipole antenna FWFS35390-RS-KR

The WFS5 is a performance dipole antenna designed to mount via its connector onto a wireless terminal, device or modem. With a hinged connector, the WFS5 can lock in  either vertical or horizontal positions using its RP-SMA connector.  Ideal for WiFi6/WiFi6E applications, the WFS5 antenna does not need a groundplane to offer superior RF performance.

Frequency Range -   2.4-2.5 GHz /  5.15-5.85 GHz /  5.85-7.125 GHz
Gain - 3 dBi / 5 dBi / 4 dBi
VSWR: <2:1 / <2:1 / <3:1
Impedance: 50 Ohm
Polarisation: Linear - Vertical
Dimensions:  203.2 x 12.7mm (lxd)
Connector: RP-SMA Plug
