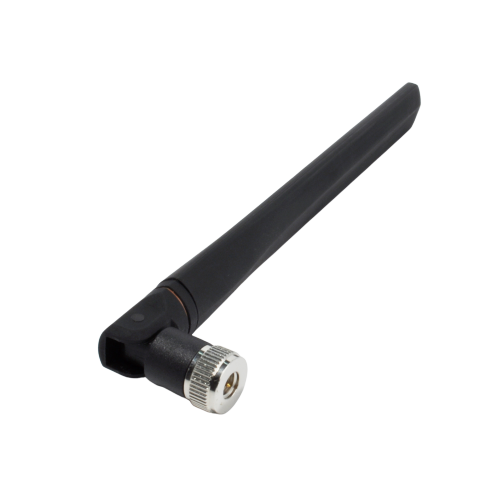

WTR7270 - Wideband LTE/4G 3G GSM Multiband Terminal antenna

The WTR7270 is a ½ wave dipole blade antenna covering 700/800/900/1800/1900/2100 and 2600 MHz for GSM and UMTS (3G) and 4G operation. It has a injection-moulded cover and comes with SMA-Male swivel joint connector that can lock in three positions. The PTR2100 offers 1.0 dBi peak gain.

The WTR7270 is an ideal solution for LTE/4G and penta-band cellular applications including wireless routers, telemetry and telematics application where LTE/4G, cellular, GSM and 3G capability is required.

Technical Specifications:

Radiating element: 1/2 Wave Element
Frequency range: 690-960/1710-2170/2500-2700 MHz
Peak Gain: 1.0 dBi
Polarisation: Linear
VSWR < 2.7:1
Power rating: 10W
Connector: SMA-Male (multiposition)
Dimensions: 171 x 18mm (max)
